Bundle Rod Heater
Bundle the Power. Multiply the Heat

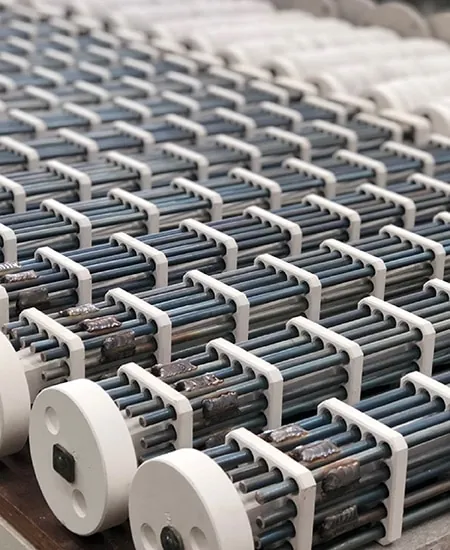

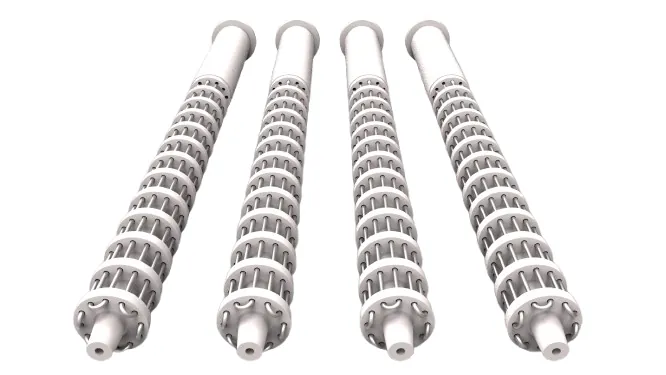

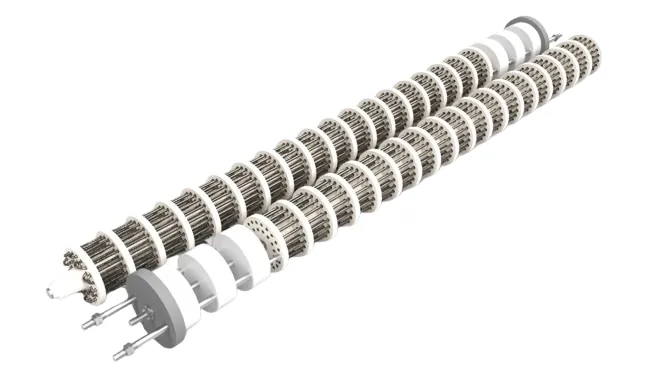

Bundle Rod Heaters are premium industrial heating elements specifically engineered for high-temperature furnaces and heavy-duty thermal processing applications. These advanced rod type heating elements feature a sophisticated construction comprising multiple terminal rods, a central support rod, and precision-engineered ceramic discs that form an efficient heating bundle capable of withstanding extreme operational demands.
Key Benefits
- Carbon Dioxide emissions are reduced to avoid the corrosion of furnace gas to the heating element or avoid the contact of burning outcome.
- Convenient to control temperature, assemble and maintenance and easy to seal.
- Better technical properties and longer working life
- Can be Horizontal or vertical mounted
- Free from oxide debris
- Higher resistivity & surface load
- Cost-effective with High watt density output.
Technical Specifications
| Flange | MS, SS grade |
|---|---|
| Hangers | Mara FeCrAl, NiCr 80/20 |
| Radiant Tube | Stainless steel SS grade, Incoloy, PMD, Cast alloys |
| Length of Tube | 300 to 5000mm (customize diameter & length) |
| Thickness of Tube | 1.5 to 8mm |
| Thermocouple Pocket | Alumina Tube(ceramic) |
Applications
Related Products
Bobbin/Porcelain Heaters
Seamless Heat, Effortless Maintenance.
Our Bobbin Heaters deliver high-efficiency indirect through a modular ceramic design, allowing for element replacement without ever draining your tanks. Engineered for uniform thermal distribution and long term durability, they are the ultimate solution for consistent, high wattage industrial performance.
- Suitable for low temperature up to 600°C furnace heating
- A wide range of lengths, voltages, and power is available to meet customers' specific requirement
- Simple and low-cost installation
Cartridge Heaters
Targeted Heat. Industrial Strength
Engineered for high density performance, our Cartridge Heaters deliver localized, high-wattage heat in a compact design. Built with premium-grade materials to withstand extreme temperatures and vibration, they provide the rapid response and pinpoint accuracy required for precision tooling and mold applications.
- Increase Heater Life
- Resists moisture contamination
- Resists abrasion and vibration
Ceramic Band Heaters
The High-Temp Industry Standard
When your production requires extreme heat and maximum energy saving, our Ceramic Band Heaters are the definitive choice. By utilising a segmented ceramic block design, these heaters act as a thermal powerhouse- retaining internal heat more effectively than any other band heater on the market.
- Built in insulation minimizes unwanted change in temperature along the barrel
- Heat transfers are not affected by irregular surfaces or a loose fit
- Heat transfers through radiation, conduction, and convection, so a perfect fit is not required compared to other band heaters
