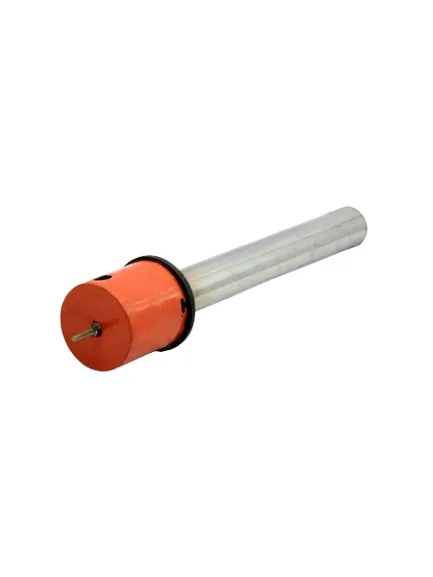

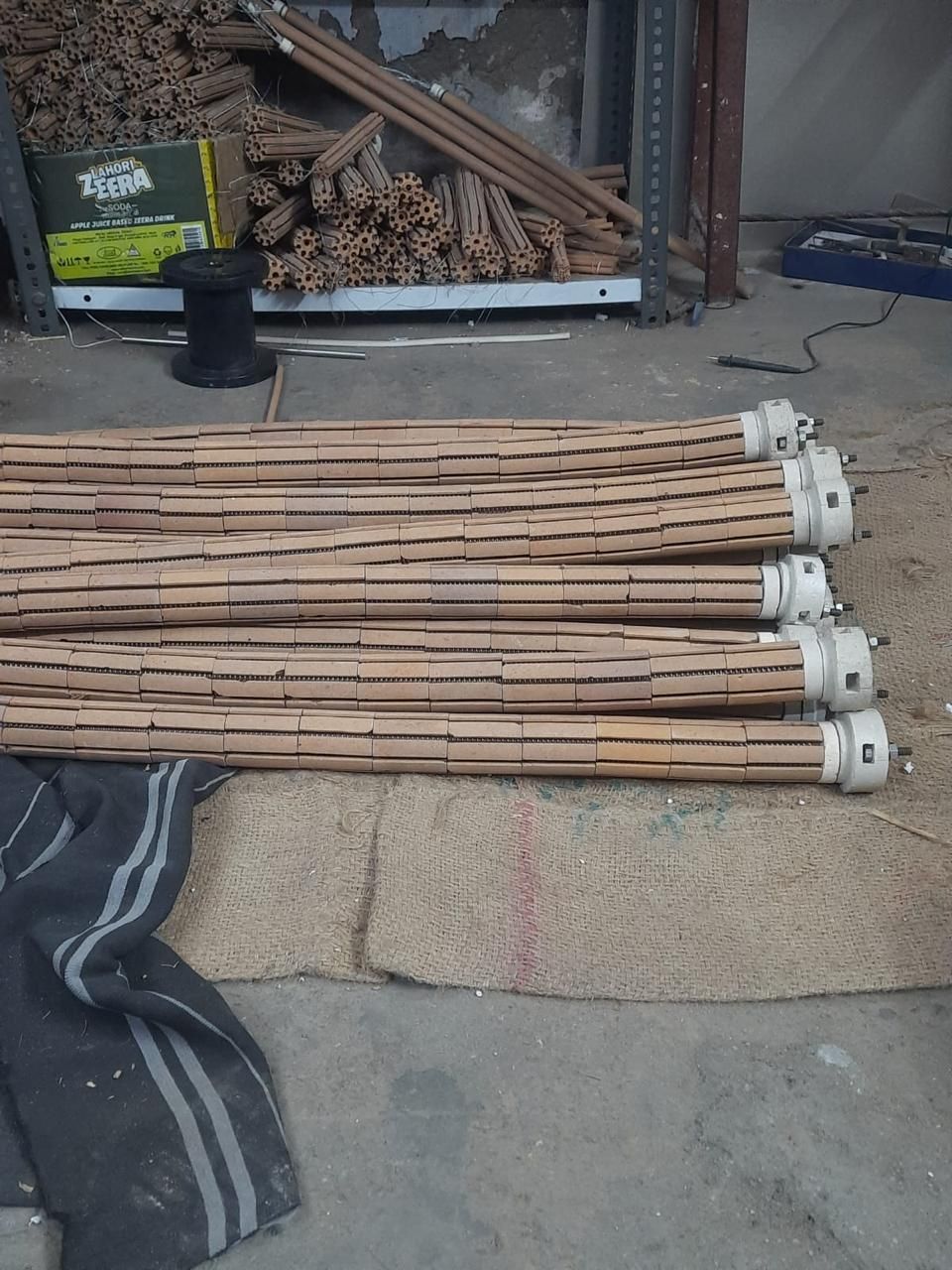

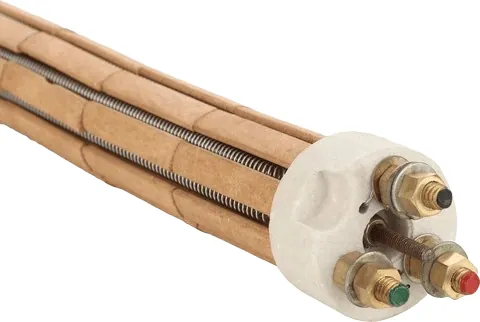

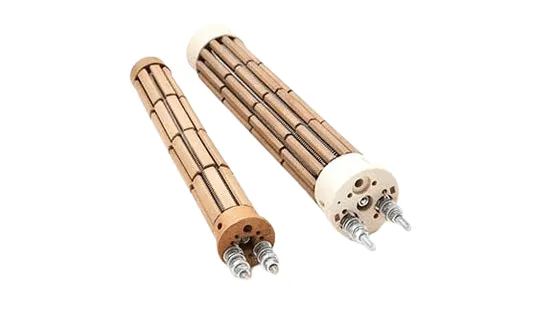

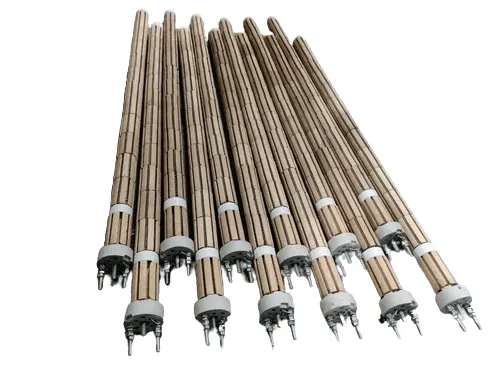

Bobbin/Porcelain Heaters
Seamless Heat, Effortless Maintenance.
Key Benefits
- Suitable for low temperature up to 600°C furnace heating
- A wide range of lengths, voltages, and power is available to meet customers' specific requirement
- Simple and low-cost installation
- Ease of maintenance and repair
- Versatile and non-polluting
- Energy-efficient as 100% of the heat generated is within the solution
Technical Specifications
| Power | Up to 12 kW |
|---|---|
| Control | Thermocouple, RTD, Thermostat |
| Bobbin Size | Standard: 25, 30, 36, 42, 45, 57, 93 Other customized sizes available |
| Terminal Box | MS, IP54 standard, IP66 waterproof terminal box |
| Watt Density | 1 to 10 W/cm² |
| Length of Tube | 300 to 2800 mm (Customized) |
| Heating Element | Ferritic alloys wire FeCrAl and non-ferritic wire NiCr 80-20, NiCr 70-30 |
| Heater Parameters | Customized – power rating, voltage, resistance, length, diameter, and other dimensions |
| Temperature Range | Up to 600°C |
| Thickness of Tube | 1.5 to 3 mm |
| Radiant Tube / Immersion Tube | Stainless Steel (SS Grade), Incoloy, Cast Alloys |
Applications
