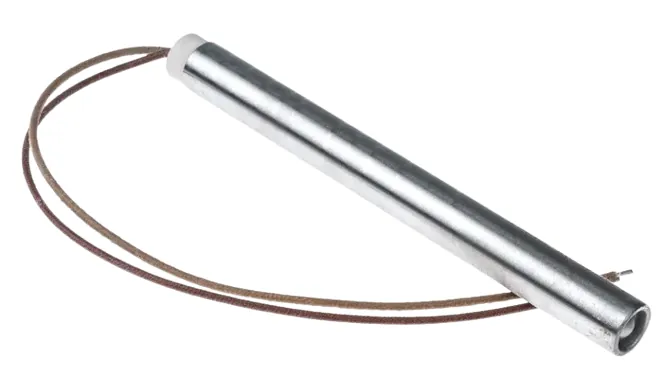

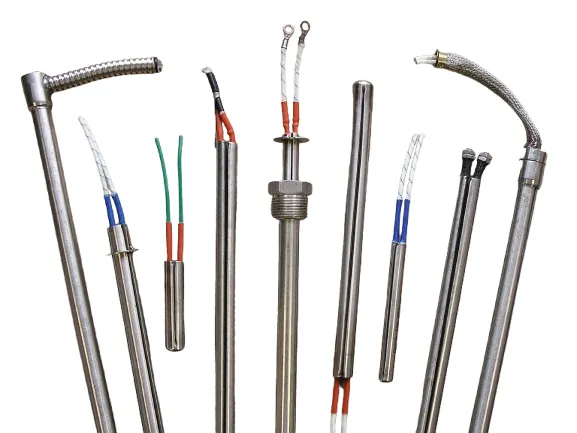

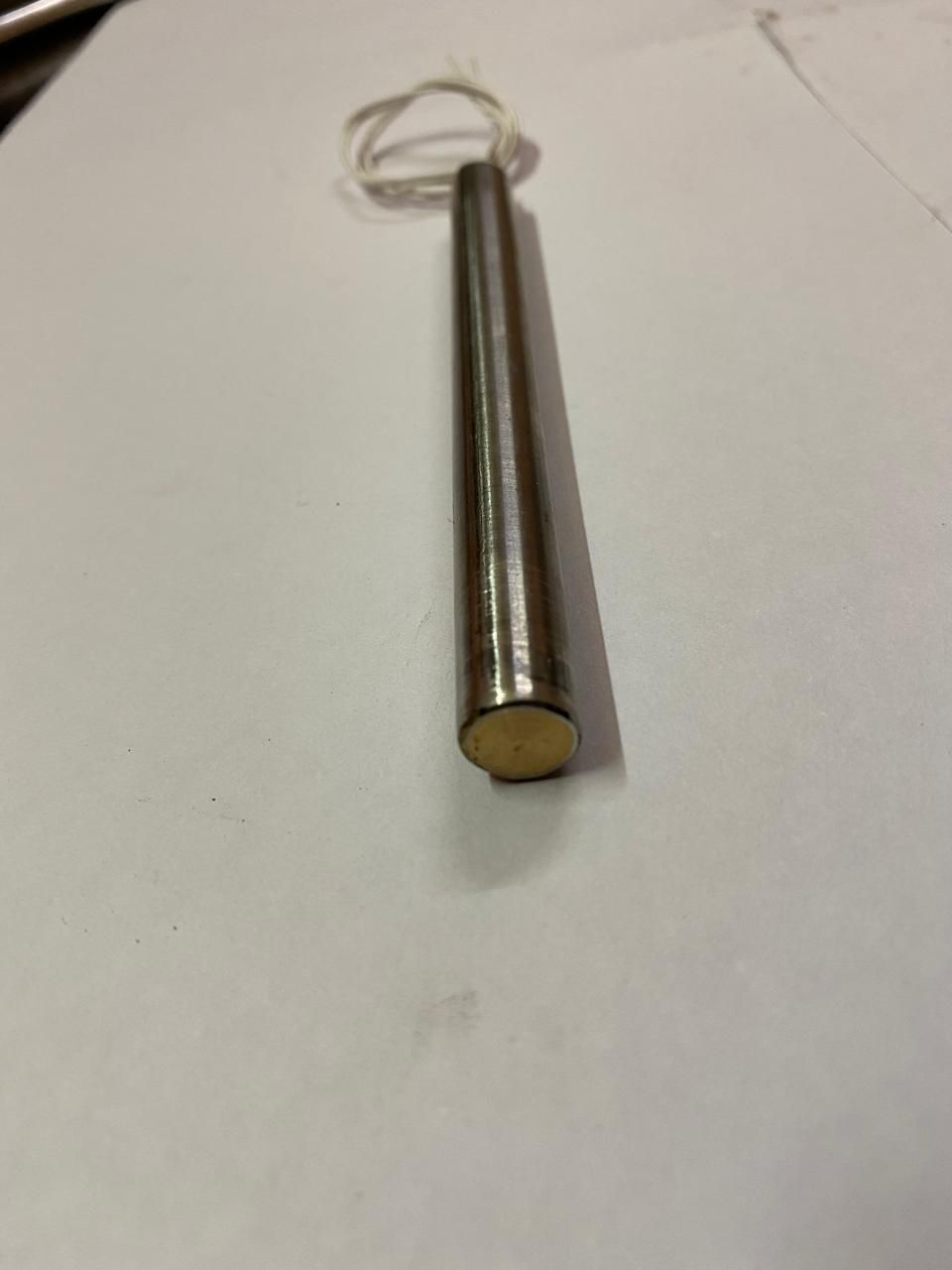

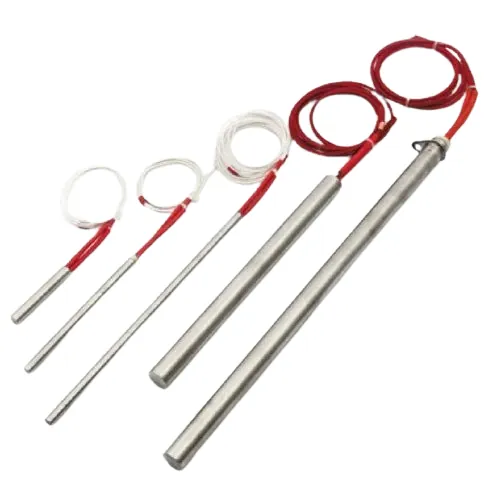

Cartridge Heaters
Targeted Heat. Industrial Strength
Key Benefits
- Increase Heater Life
- Resists moisture contamination
- Resists abrasion and vibration
- Protects against high temperatures without additional insulation
- High emissivity sheath
- Variable watt density Upon Request
Technical Specifications
| Length | 25mm to 2500 mm |
|---|---|
| Conductor | Ni Cr 80/20 |
| Insulation | High purity MGO core & powder |
| Surface load | 150 W/inch on sheath – depends on diameter |
| Diameter Range | 5 mm to 35 mm |
| Leakage current | < 0.5mA |
| Sheath Material | SS-304, SS-321, SS-310, incoloy 800 |
| Unheated length | connection side 10mm to 15mm bottom side 10 mm |
| Length tolerance | ±1% or ±3mm |
| Diameter tolerance | -0.02 to -0.05 |
| Working temperature | up to 750°C on sheath |
| Resistance tolerance | -5%, +3% |
| High voltage strength | < 0mA@800V |
| Integrated thermocouple | optional available ‘j’ type or ‘k’ type switchable zones |
| Operating voltage Range | 12V to 480V |
Applications
